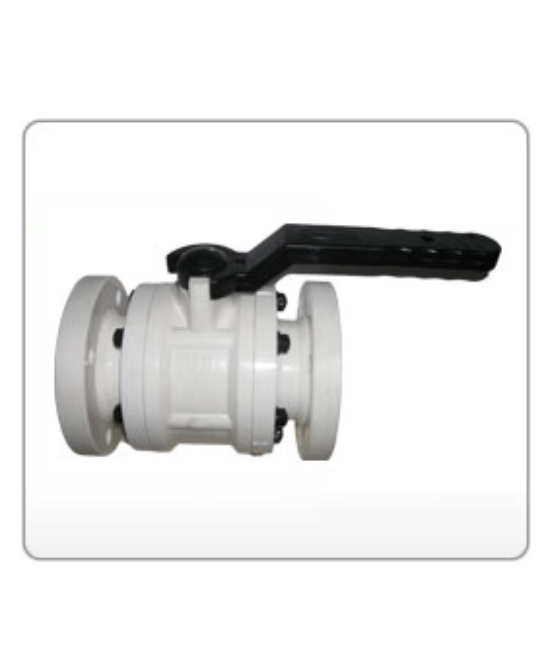

PP Flange End Ball Valve (White)

PP Flange End Ball Valve (White)

PP flanged end ball valves are manufactured in compliance with industry standards and come in different specifications. Compared with solid polytetrafluoroethylene lined metal valves and PVDF ball valves, this valve is chemically resistant and economical. The type of valve is very light and is considered a better choice for G.I. evaluation. Or C. I. Valve.

  • Share:

Inquiry Now
Poonam Valaves
Poonam Valaves
Poonam Poonam Poonam

PP Flange End Ball Valve (White)



The pp ball valve is especially used to adjust the flow of water, liquid and various other types of fluids in different industrial and domestic pipes and hose fittings. We use graded UPVC materials to strictly design these valves. In order to meet the needs of our valuable customers, after verifying various quality parameters, we have provided valves of various sizes, sizes, connections and specifications.

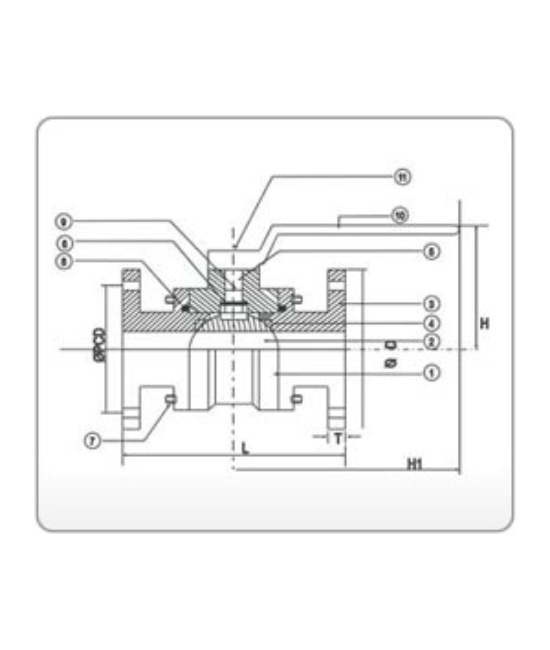

Bill of Material of PP Flange End Ball Valve

Sr.No.PartQty.Material
1.Body1Polypropylene
2.Ball1P.P.R.
3.Screw End2Polypropylene
4.Seat2PTEE(Teflon)
5.Stem1P.P. Reinforced with M.S.
6.Bearing1Teflon
7.Stud & Nut5 to 10M.S. Zinc plated / S.S. 304 / S.S.316

Technical Data of PP Flange End Ball Valve

ConstructionMulti Piece Body
DesignThree Piece
Size Range15mm. to 150mm.
Max working temp.90ºC (Consistently)
Gasket / Stem SealNeoprene
Hydraulic Test Pressure15 kg upto 4″

Important Parameters of Valves of PP Flange End Ball Valve

Valve SizeFlange DiameterLength
Face to Face		Flange ThiknessHeight Centre (H)
15(1/2″)951281571.5
20(3/4″)1001481777
25(1″)1201551990
32(1.1/4″)14018019110
40(1.1/2″)14018019110
50(2″)16520521117.5
65(2.1/2″)18523726147.5
80(3″)20025026162
100(4″)23030027185
150(6″)30543035247.5

Special Features of Three Piece Flange End. (White)

1. Available in Flange Type in 15 mm to 150 mm and in Screw Type in 15 mm to 100 mm.
2. Manufactured from Poly Propylene, a Chemically inert thermoplastic.
3. Can be used upto 90ºC Temp.
4. Hydraulically and Pneumatically tested for 15 Kg. upto 4″.
5. Protective and Resistive from most of the corrosive Chemicals.
6. Flange drilled as per customer’s specification.



PP Flange End Ball Valve White

PP Flange End Ball Valve White





PP Flange End Ball Valve White

Product Details:

  • Minimum Order Quantity: 2.5” - 10 Piece
  • Color: WHITE
  • Pressure: 5 KG
  • Temperature: 80°C
  • Brand: Poonam
  • Design: 3 PICE

Technical Specification:

  • Material: PP (Polypropylene)
  • Design: 3 Piece Design
  • Size Range: 25 mm to 315 mm
  • Flanged as per ANSI B 16.5 (150#), BS 10 (D/E/F) & DIN STD.
  • Standard: As per manufacturer's request

Available Items:-

· PP Flange End Ball Valve White

· White PP Flange End Ball Valve

· Polypropylene Flange End Ball Valve White

· PP Flange Ball Valve White Manufacturer

· PP Flange End Ball Valve White Supplier

· PP Flange End Ball Valve White Exporter

· White PP Flange Ball Valve Price in India

· PP Flange End Ball Valve White in Ahmedabad

· PP Flange End Ball Valve White in Gujarat

· PP Flange End Ball Valve White for HDPE Pipe

Polypropylene Flange End Ball Valve


Polypropylene Flange End Ball Valve

Polypropylene Flange End Ball Valve

Product Details:

  • Minimum Order Quantity: 2.5” - 10 Piece
  • Color: WHITE
  • Pressure: 5 KG
  • Temperature: 80°C
  • Brand: Poonam
  • Design: 3 PICE

Technical Specification:

  • Material: PP (Polypropylene)
  • Design: 3 Piece Design
  • Size Range: 25 mm to 315 mm
  • Flanged as per ANSI B 16.5 (150#), BS 10 (D/E/F) & DIN STD.
  • Standard: As per manufacturer's request

Available Items:-

· PP Flange End Ball Valve White for PVC Pipe

· High Quality PP Flange End Ball Valve White

· Best PP Flange End Ball Valve White Price

· PP Flange End Ball Valve White Dealer in India

· PP Flange End Ball Valve White Distributor

· PP Flange End Ball Valve White Industrial Grade

· PP Flange End Ball Valve White for Agriculture

· PP Flange End Ball Valve White for Irrigation

· PP Flange End Ball Valve White for Water Supply

· PP Flange End Ball Valve White for Plumbing

PP Flange Ball Valve Supplier India





PP Flange Ball Valve Supplier India









PP Flange Ball Valve Supplier India

Product Details:

  • Minimum Order Quantity: 2.5” - 10 Piece
  • Color: WHITE
  • Pressure: 5 KG
  • Temperature: 80°C
  • Brand: Poonam
  • Design: 3 PICE

Technical Specification:

  • Material: PP (Polypropylene)
  • Design: 3 Piece Design
  • Size Range: 25 mm to 315 mm
  • Flanged as per ANSI B 16.5 (150#), BS 10 (D/E/F) & DIN STD.
  • Standard: As per manufacturer's request

Available Items:-

· PP Flange End Ball Valve White Chemical Resistant

· PP Flange End Ball Valve White UV Stabilized

· PP Flange End Ball Valve White Leak Proof

· PP Flange End Ball Valve White Heavy Duty

· PP Flange End Ball Valve White Long Life

· PP Flange End Ball Valve White Easy Installation

· PP Flange End Ball Valve White Affordable Price

· PP Flange End Ball Valve White Bulk Supplier

· PP Flange End Ball Valve White Export Quality

· PP Flange End Ball Valve White Manufacturer in India

High Quality PP Flange Ball Valve


High Quality PP Flange Ball Valve

High Quality PP Flange Ball Valve

Product Details:

  • Minimum Order Quantity: 2.5” - 10 Piece
  • Color: WHITE
  • Pressure: 5 KG
  • Temperature: 80°C
  • Brand: Poonam
  • Design: 3 PICE

Technical Specification:

  • Material: PP (Polypropylene)
  • Design: 3 Piece Design
  • Size Range: 25 mm to 315 mm
  • Flanged as per ANSI B 16.5 (150#), BS 10 (D/E/F) & DIN STD.
  • Standard: As per manufacturer's request

Available Items

· PP Flange End Ball Valve White Supplier in Ahmedabad

· PP Flange End Ball Valve White Supplier in Gujarat

· PP Flange End Ball Valve White for Chemical Industry

· PP Flange End Ball Valve White for Food Processing

· PP Flange End Ball Valve White for Industrial Use

· PP Flange End Ball Valve White for Municipal Water Lines

· PP Flange End Ball Valve White for Drip Irrigation

· PP Flange End Ball Valve White for Sprinkler Systems

· PP Flange End Ball Valve White Exporter to UAE

· PP Flange End Ball Valve White Exporter to Saudi Arabia

PP Flange Ball Valve for Agriculture


PP Flange Ball Valve for Agriculture

PP Flange Ball Valve for Agriculture

Product Details:

  • Minimum Order Quantity: 2.5” - 10 Piece
  • Color: WHITE
  • Pressure: 5 KG
  • Temperature: 80°C
  • Brand: Poonam
  • Design: 3 PICE

Technical Specification:

  • Material: PP (Polypropylene)
  • Design: 3 Piece Design
  • Size Range: 25 mm to 315 mm
  • Flanged as per ANSI B 16.5 (150#), BS 10 (D/E/F) & DIN STD.
  • Standard: As per manufacturer's request

Available Items:-

· PP Flange End Ball Valve White Exporter to Africa

· PP Flange End Ball Valve White Exporter to Kenya

· PP Flange End Ball Valve White Exporter to Bangladesh

· PP Flange End Ball Valve White Exporter to Nepal

· PP Flange End Ball Valve White Exporter to Sri Lanka

· PP Flange End Ball Valve White High Pressure

· PP Flange End Ball Valve White 25MM to 315MM

· PP Flange End Ball Valve White with EPDM Seal

· PP Flange End Ball Valve White ANSI Standard

· PP Flange End Ball Valve White DIN Standard
