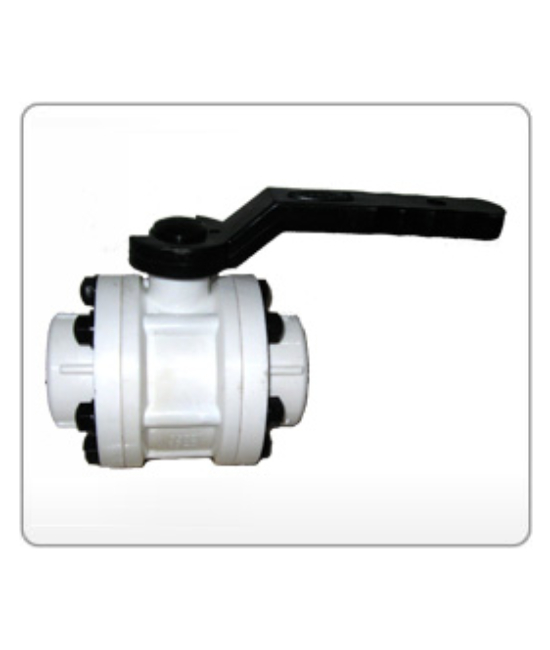

PP Screwed End Ball Valve (White)

Available in Flange Type in 15 mm to 150 mm and in Screw Type in 15 mm to 100 mm.

Concerning the changing prerequisite of the market, we maker of the ball valve are herewith the powerful and dependable scope of the PP ball valve with the screwed end, arranged and fabricated in understanding to the global quality principles.

This screwed finish of this PP ball valve is characterized and uniform helps tight fit with the separate channeling framework hardware and guarantees the release free understanding all through. There is no danger of the consumption or harm, because of the PP material, sharing phenomenal obstruction against erosion and synthetic concoctions, making it valuable in a wide range of use.

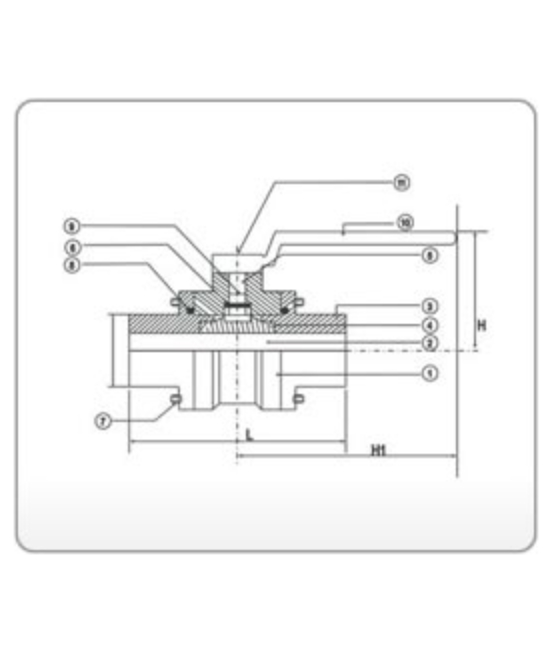

Bill of Material of PP Screwed End Ball Valve

Sr.No.	Part	Qty.	Material
1.	Body	1	Polypropylene
2.	Ball	1	P.P.R.
3.	Screw End	2	Polypropylene
4.	Seat	2	PTEE(Teflon)
5.	Stem	1	P.P. Reinforced with M.S.
6.	Bearing	1	Teflon
7.	Stud & Nut	5 to 10	M.S. Zinc plated / S.S. 304 / S.S.316
8.	Body “O” Ring	2	Neoprene / Teflon
9.	Stem “0” Ring	1	Neoprene / Viton
10.	Handle	1	P.P. Reinforced with M.S.
11.	Pin	1	S.S. 304

Technical Data of PP Screwed End Ball Valve

Construction	Multi Piece Body
Design	Three Piece
Size Range	15mm. to 150mm.
Max working temp.	90ºC (Consistently)
Gasket / Stem Seal	Neoprene
Hydraulic Test Pressure	15 kg upto 4″

Important Parameters Of PP Screwed End Valve

Valve Size	Length Face to Face	Height Centre (H)
15(1/2″)	87	71.5
20(3/4″)	136	77
25(1″)	103	90
32(1.1/4″)	132	110
40(1.1/2″)	132	110
50(2″)	161	117.5
65(2.1/2″)	188	147.5
80(3″)	218	162
100(4″)	256	185

Special Features of Of PP Screwed End Valve

1. Available in Flange Type in 15 mm to 150 mm and in Screw Type in 15 mm to 100 mm.
2. Manufactured from Poly Propylene, a Chemically inert thermoplastic.
3. Can be used upto 90°C Temp.
4. Hydraulically and Pneumatically tested for 15 kg upto 4″.
5. Protective and Resistive from most of the corrosive Chemicals.
6. Exelent U.V. stabilty due to presence of carbon black.
7. Heavy duty valve can last for years after installation
